Eastlake, OH, June 14, 2012 -- Nextec Laser Metrology LLC, a corporation serving the quality inspection market, has announced its WIZblade turnkey metrology solution for rapid high-precision measuring of both aerospace jet engine blades and industrial turbine and compressor blades. WIZblade overcomes the challenges of freeform blade measurement and inspection, significantly reducing inspection time while achieving higher accuracy and sampling rates. Customers have been known to decrease the turbine blade inspection process from eight hours a day down to 55 minutes with the WIZblade solution.
The large dynamic range and high accuracy of the probe makes it easy to set up the alignment loop and the airfoil cross-section path and collect hundreds of points fast and accurate, with no noise. This solution provides single point precision of 12 microns and a feature precision of 2 microns (100 points best fit), meeting the highest precision requirements for blade measurement.
The WIZblade laser scanning system quickly compares all dimensional components to the original CAD model, revealing both form and dimensional deviations within the manufacturing process. By monitoring the blade machining process and measuring the parts, it can quickly be determined if the machine output is deviating due to cutting tool deterioration and the tool offset can be adjusted accordingly. This provides closed-loop control of the machining process using the SPC results of the measurements, maintaining both process and component integrity.

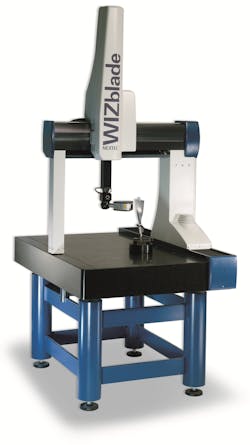

WIZblade works through a combination of a proprietary 3D laser-based scanning sensor, advanced laser and vision technologies, state of the art motion controller and special software for blade alignment, blade measurement, blade analysis and inspection report. WIZblade alignment, inspection and analysis are performed automatically during production and measurement of both unfinished (forged or cast) and finished (machined, shot peened and coated) blades
To accommodate variance in blade geometry and size, the system comes with a variety of 3-axis motion platforms and optional rotary tables. WIZblade has been designed with the flexibility to meet the needs of an array of blade manufacturers, designs and standards.
For more information and WIZblade specifications, visit http://nextec-laser.com/wizblade.asp. Demonstrations of the solution can be scheduled by contacting the Nextec Laser Metrology offices at 440-413-7605.
Nextec Laser Metrology solutions are based upon laser and quality control technologies developed by Nextec 3D Inspection Technologies (Haifa, Israel), which originally developed the solution since 2001. Haifa is part of the Israeli Silicon Valley corridor, recognized as a highly influential location for edge of technology development. Nextec inspection systems are installed at leading automotive and aerospace customers across the world.
